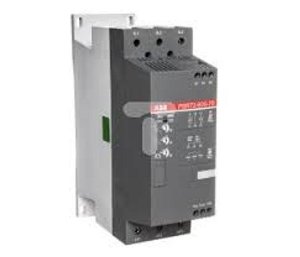

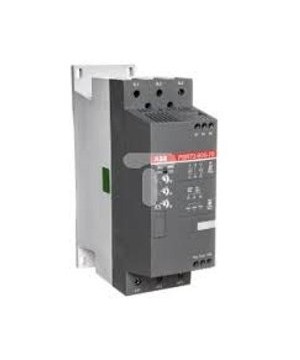

Softstarter PSR72 - 600 - 70 (merk ABB)
For max 600V main voltage and 100-240V 50/60Hz control supply voltage.

Extended Product Type : PSR72-600-70

Product ID : 1SFA896113R7000

Dimensions :
Width : 70.000 mm, Height : 220.000 mm, Depth : 180.000 mm, Weight : 2.27 kg.

Rated Operational Voltage : Main Circuit 208 600 V AC

Rated Control Supply Voltage (Us) : 100 ... 240 V AC

Rated Control Circuit Voltage (Uc): 50 Hz/60 Hz 100 240 V AC

Rated Frequency (f) :
- Main Circuit 50/60 Hz
- Control Supply 50/60 Hz

Rated Operational Current - In-Line Connection (Ie) : 72 A
